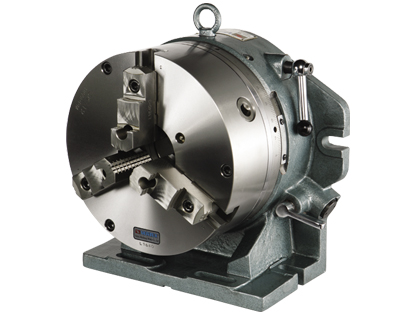

CC-6,8,12 分度頭
|
| 产品名称：CC-6,8,12 分度頭 |
 |
| 库存数量：10000 套 |
|
| 产品介绍： |
| ORDER NO. |
 |
Number |
|
A |
|
B |
|
C |
|
D |
|
h |
|
DIAMETER
(mm) |
Gross Weight |
 |
CC-6 |
|
2.3.4.6.8.12.24 |
|
260 |
|
218 |
|
156.2 |
|
167 |
|
123 |
|
44 |
(C)36 |
 |
CC-8 |
|
2.3.4.6.8.12.24 |
|
312 |
|
257 |
|
173.3 |
|
200 |
|
155 |
|
63 |
(C)51 |
|
CC-12 |
|
2.3.4.6.8.12..16.24.48 |
|
433.2 |
|
391 |
|
232.5 |
|
310 |
|
228 |
|
110 |
(C)133 |
|
|
- 1. The center through hole is big to be suitable for the large and long workpiece.
- 2. Hardened and ground 24 position master plate, can index the special angle of 15 with excellent accuracy.
- 3. CS-Type can be used with 2 pcs type 3-Jaw Chuck. Especially, it does similar work. as rotary table when it match with face plate.
- 4. Rapid indexing and easy operation. It’s a sharp equipment for mass-production.
- 5. Super Spacer index include 3 jaw chuck, Face plate dia. 10”, 250mm Masking Plates 2,3,4,6,8,12.
- 6. Simple index include 3-jaw chuck, Masking Plates 2,3,4,6,8,12
- 7. Used the key guide block, the center can be corrected quickly and accurately.
|
|
|
|
|
|
