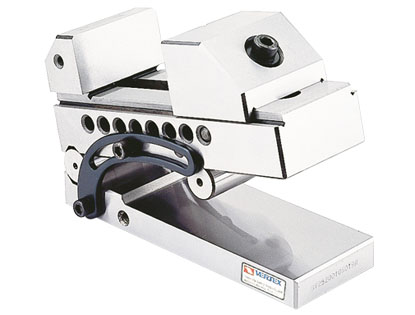

SVB-20,25,30 正弦萬力 吊拉型
产品名称：SVB-20,25,30 正弦萬力 吊拉型

库存数量：10000 套
  产品介绍：
ORDER NO. MATERIAL LENGTH WIDTH JAW OPENING JAW HEIGHT ANGLE HARDEN WEIGHT CODE NO.
SVB-20
SK2
150
48
65
25
O°-46°
HRC56°-58°
3.1Kg
2003-030
SVB-25
SK2
170
63
90
35
O°-46°
HRC56°-58°
4.6Kg
2003-031
SVB-30
SK2
180
73
90
35
O°-46°
HRC56°-58°
9.1Kg
2003-032
● Compound angles easily and quickly set.
● Adjustmentsup to 46 degrees. The vice parallel
Precision 0.005mm and vertical angles in 0.05mm.

ACCURACY
Material Hardened SKS HRC60°Sub-zero processing
Parallelism Within 0.003/100mm
Squareness Within 0.005/100mm
Model V.VC.L CSV
Angle tol. Within 15sec Within 20sec
Since conversion table attached
