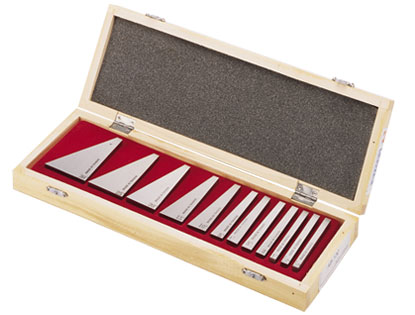

AB-130 精密角度規
产品名称:AB-130 精密角度規

库存数量:10000 套
  产品介绍:
ORDER NO. WEIGHT CODE NO.
AB-130
1.1KG
2006-001
Furnished in 1° increments to 5 degrees and in 5° increments to 30 degrees. With the addition of the optional ¼° and ½° blocks virtually and conceivable angle to these increments can be established.
* Simple, quick angle set-ups.
* Eliminates calculations, avoids errors.
* Lightly magnetized for better holding.
* Manufactured of steel, hardened, stabilized and ground.
* Sizes:3" long × ¼"thick.(75mm×6mm)
* Accuracy:.00001" per inch.
* Oil-hardened steel, precision ground.
12pcs angle blocks(¼°, ½°,1°,2°,3°,4°,5°,10°,15°,20°,25°,30°)
