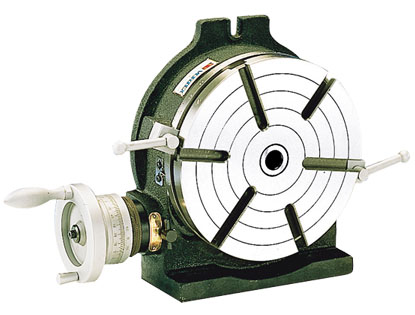

Vertical Rotary Table,HV-6,8,10,12,14,16,WITH face plate
橫立兩用分度盤
FEATURES:
| 1. |
Our Tables are made of high density Meehanite and use "HEIDENHAIN" electronic equipment to inspect angle to assure the excellent quality and durableness. |
| 2. |
Use excellent machining center to process. Spindle end be applied accuracy bearing. Can be assured to keep very steady under load cutting. |
| 3. |
Worm is hardened and ground. The ratio is 90:1. The work table is graduateda full 360° so that one turn of the handle moves the table through 4°. Micro collar is graduated in steps of 1'min. And vernier scale makes settings down to 10 seconds possible. |
| 4. |
These Rotary Tables are popular for their excellent perfor-mance, practical design and reasonable cost. They are widely used for circular cutting work, angle setting, boring, spot-facing and similar work. |
| 5. |
Using the Key guide block, the center can be corrected quickly and accurately. |
| ITEM NO. |
TESTING OBJECTIVE |
VARIATION(INCHES)(MM) MAXIMUM TESTED |
| 1 |
FLATNESS OF CLAMPING SURFACE(CONCAVE) |
.0006(0.015) |
| 2 |
PARALLELISM OF CLAMPING SURFACE TO BASE |
.0008(0.0.02) |
| 3 |
SQUARENESS OF CLAMPING SURFACE TO ANGLE FACE |
.0008(0.0.02) |
| 4 |
TRUE RUNNING OF CLAMPING SURFACE |
.0006(0.015) |
| 5 |
TURE RUNNING OF CENTER HOLE MEASURED AT HOLE EDGE |
.0008(0.0.02) |
| 6 |
INDEXING ACCURACY OF DIRECT INDEXING MECHANISM MAXIMUM CUMULATIVE SPACING ERROR |
45" |
| ORDER NO. |
Table |
Base dimension |
Bolt slots |
The Load Capacity For Rotary Table |
Center sleeve |
Gross Weight kg/lb |
| Outer diamensions |
Height |
| A1 |
D |
H |
H1 |
A |
B |
g |
Horizontal |
Vertical |
| HV-4 |
70 |
110 |
80 |
85 |
145 |
115 |
12 |
35KGS |
18KGS |
MT-2 |
(C)7.5 |
| HV-6 |
78
3.07 |
150
5.91 |
80
3.11 |
100
3.94 |
200
7.87 |
160
6.30 |
15
0.59 |
40KGS |
20KGS |
MT-2 |
(C)13 |
| HV-8 |
100
3.94 |
200
7.87 |
105
4.13 |
135
5.31 |
265
10.43 |
220
8.66 |
17
0.67 |
80KGS |
40KGS |
MT-3 |
(C)26 |
| HV-10 |
110
4.33 |
250
9.84 |
115
4.53 |
165
6.50 |
325
12.80 |
280
11.02 |
17
0.67 |
90KGS |
50KGS |
MT-3 |
(C)37 |
| HV-12 |
130
5.12 |
300
11.81 |
135
5.32 |
195
7.68 |
388
15.27 |
330
12.99 |
18
0.71 |
120KGS |
60KGS |
MT-4 |
(C)70 |
| HV-14 |
150
5.12 |
350
13.78 |
140
5.51 |
230
9.03 |
450
17.72 |
380
14.95 |
18
0.71 |
130KGS |
70KGS |
MT-4 |
(C)92 |
| HV-16 |
150
5.90 |
406
15.98 |
155
6.10 |
255
10.03 |
500
16.69 |
430
16.93 |
18
0.71 |
140KGS |
60KGS |
MT-4 |
(C)122 |
(W) wooden case; (C) Caron BOX 橫立兩用分度盤 |
