可傾斜分度盤
|
| 产品名称：可傾斜分度盤 |
 |
| 库存数量：10000 套 |
|
| 产品介绍： |
|
|
| 1. |
Accurate and built for use in milling, boring and other machines. |
| 2. |
Indexing, facing and other operations can be done rapidly with extreme precision. |
| 3. |
Worm shafts are hardened and ground. |
| 4. |
Indexing can be done with optional dividing plates. |
| 5. |
DP-1 for VUT-6,DP-3 for VUT-10,VUT-12. |
| 6. |
Tailstook TS-1 for VUT-6,TS-3 for VUT-10,VUT-12.

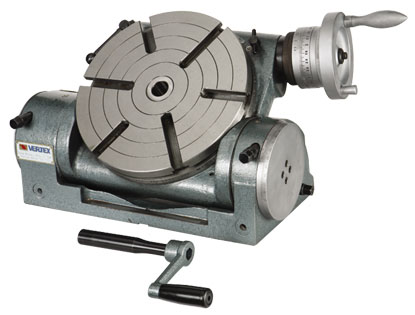

VERTEX Tilting Rotary Tables 6,VUT-6,10,12 |
| MAIN SPECIFICATIONS |
VUT-6 |
VUT-10,VUT-12 |
| TILTING |
Degree per one handle rotation |
6° |
1° |
| vernier reading |
1' |
2' |
| TABLE |
Degree per one handle rotation |
4° |
4° |
| Scale of micro collar |
1' |
1' |
| vernier reading |
10" |
10" |
| Gear ratio |
1:90 |
1:90 |
| ORDER NO. |
TABLE DIAMETER & TABLE HEIGHT |
MOUNTING SURFACE |
|
T-SOLT WIDTH |
CENTER HOLE |
| D |
H |
h |
A |
B |
a |
b |
c |
e |
| VUT-6 |
150 |
115 |
165 |
180 |
268 |
380 |
143 |
125 |
10 |
MT-2 |
| VUT-10 |
250 |
155 |
275 |
255 |
397 |
495 |
210 |
187 |
12 |
MT-3 |
| VUT-12 |
300 |
178 |
319 |
300 |
447 |
551 |
235 |
212 |
14 |
MT-4 |
| | |
|
|
|
